Pretreatment of municipal and Industrial water
low heed loss
Compact and Robust design
Easy to retrofit into existing channels
suitable for small and big treatment plants
made of stainless steel (body) and ABS ( teeth)
Product range
width 2. 5m
Height 15m
mesh size 2, 3,6,10,15mm
scree inclination options ( 70 , 80 )
grit and a grease removal in wastewater treatment plant in Rectangular tank
double grease scraper to remove grease Completely From tank surface
bridge made of galvanized Carbon steel and wetted part with Stainless steel
Product range
width Up to 10 m
Length Up to 50 m
sediment and grease removal From primary and Secondary rectangular Clarifiers
sludge Suction design on request
Standard Constriction is hot dip galvanizing Carbon steel for bridge and Stainless steel for wetted parts.
Oil and grease system collecting skimmer blade
Simplicity of the civil Construction
Product range
Tank width: up to 15 m
sediment Removal from primary and secondary clarifiers
half and Full bridge construction
sludge suction design on request
Standard Construction is hot dip galvanizing Carbon steel for bridge and stainless steel for wetted parts
oil and grease collecting system with skimmer blade
motorized brush on request
Product range
tank diameter : up to 50 m
Aeration of wastewater
Low speed type
Possibility of submersion depth regulation
Standard Construction is epoxy Coated Carbon steel, Stainless steel on request.
Possibility to install with floating drums in variable Level tanks
Product Range
Power : 3 to 45 KW
Removal of undissolved matter From water
Applicable at municipal and Industrial wastewater treatment Plants and Paper mills
Circular structure made of stainless steal
higher TSS Removal efficiency then Rectangular units
scoop design for solid removal from tank surface
minimum occupied space
Product range
Capacity: 50 to 300 m3/hour
separation of sand and grit from raw waste water
Shafted Stainless steel Screw
high dewater of grit
Product range
Capacity = 20, 40, 60m3/hour
Grit Conveying: up to 2 ton/hour

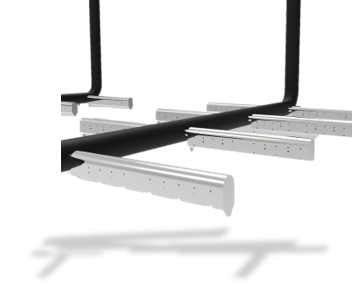

Air distribution in grit removal units , tank mixing and aeration
made of Stainless Stael
Free maintenance
Product Range
Length 0.3-1.5 m
Industrial and municipal wastewater treatment plant
Anoxic, nitrification, oxidation and sedimentation tanks
Standard Construction is epoxy Coated Carbon streel
Simplicity of operation due to no need of sludge return
Low occupied space
Product range
Range Capacity : up to 1000 m3/day
sludge, Screening conveying
made of galvanized Carbon Steel or stainless Steel
Product range
Length : 2 to 20m
